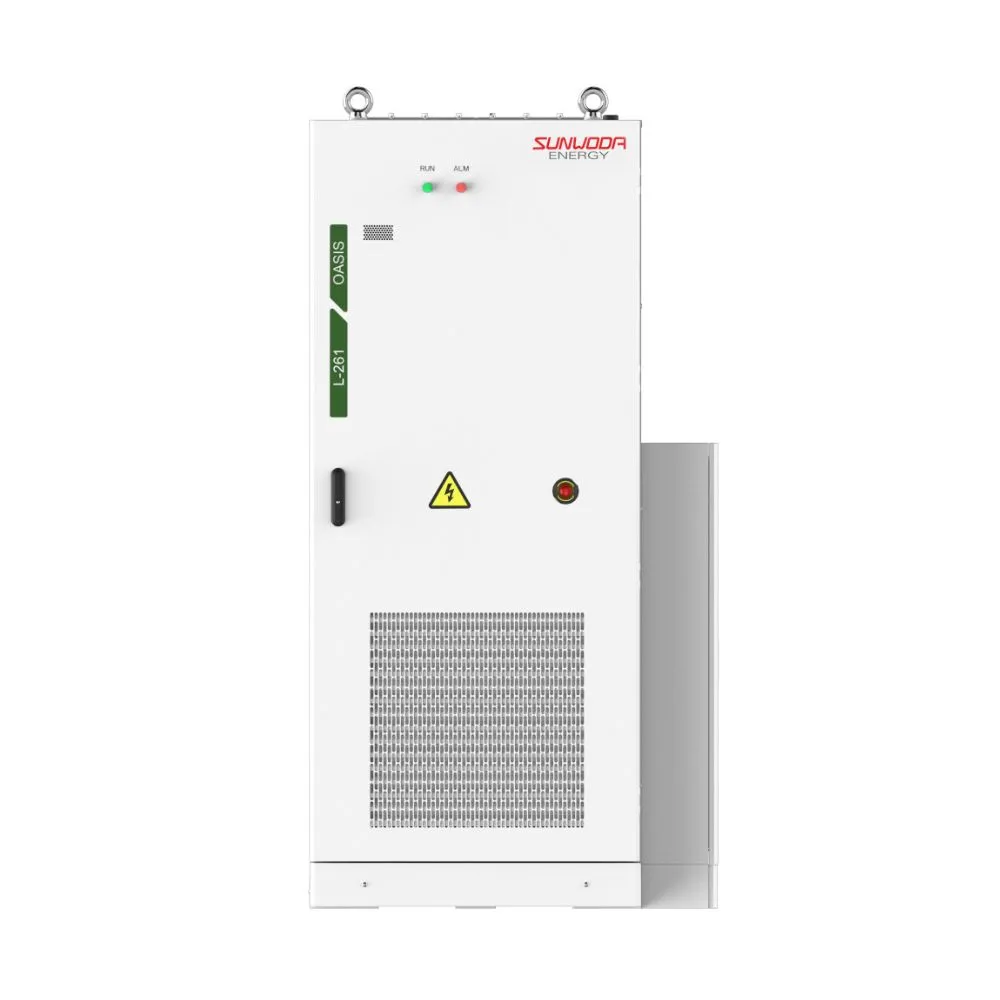

Sunwoda Oasis L261 All in one Energy Storage System (With STS)
Sunwoda OASIS L261 All in one (With STS) is a versatile all-in-one energy storage system with liquid cooling, created for stable operation in commercial and industrial environments.
Description

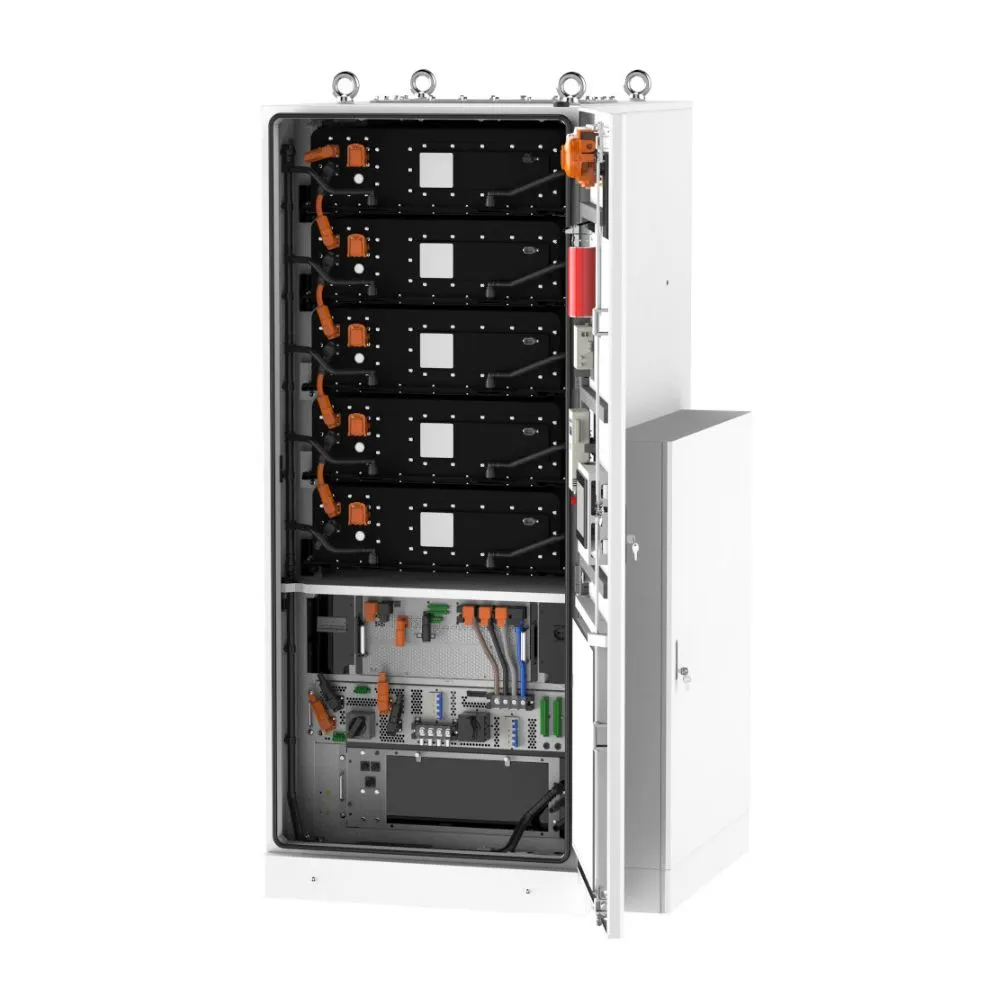

Sunwoda OASIS L261 All in one (With STS) is a versatile all-in-one energy storage system with liquid cooling, created for stable operation in commercial and industrial environments. The solution combines high capacity, intelligent control and full integration of all components in a single enclosure.
This system is very durable and hard-wearing; it operates stably even under intensive loads. One of its features is more than 9000 charge/discharge cycles. The equipment can be scaled up even to megawatt-level power.
The key advantage of this model is also worth noting. The system has a built-in STS (Static Transfer Switch) module:
- instant switching between power sources
- protection of critical loads
- stable operation during outages
Storage system specifications
- Brand
- Sunwoda
- Depth of discharge, %
- 100 %
- Battery end user
- Commercial/Industrial
- Battery IP protection class
- IP55
- Protection class (IP)
- Suitable for outdoor use
- Usable battery capacity (kWh)
- 261.2 kWh
- Rated battery capacity (kWh)
- 261.2 kWh
- Grid connection
- On-grid and off-grid operation capability
- Dimensions (W x H x D) mm
- 980 x 2350 x 1390 mm
- Charge/discharge rate
- 0.5°C
- Cell type
- LiFePO4
- Product weight (kg)
- 2400 kg
