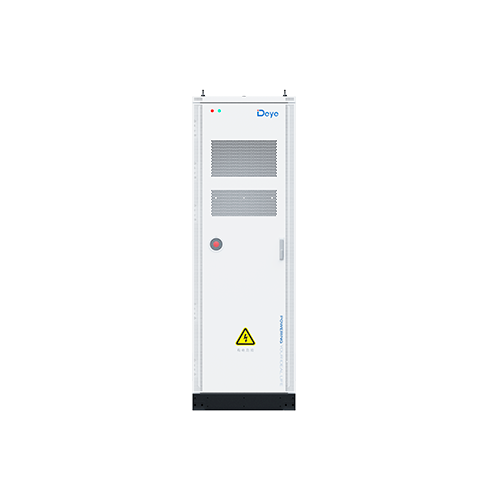

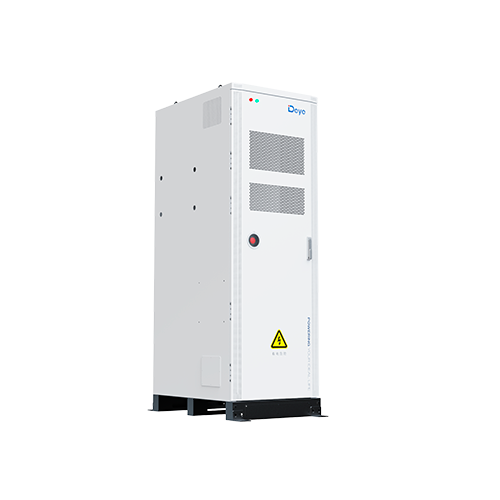

Deye High Voltage Outdoor 60 kWh Cabinet ESS
- Capacity 61,44 kWh
- Weight 1070 kg
DEYE GE-F60 is a compact, high-technology energy storage system for the commercial and industrial segment (C&I ESS) that combines reliable backup power, intelligent energy management and a high level of safety.
Description
DEYE GE-F60 is a compact, high-technology energy storage system for the commercial and industrial segment (C&I ESS) that combines reliable backup power, intelligent energy management and a high level of safety. The solution is ideally suited to businesses for which stable operation matters even in difficult conditions.
With this equipment your business or production facility will become energy-independent, as the unit can start up even without a grid connection and operate in off-grid mode. It has integrated technologies that include an energy management system (EMS), battery control (BMS) and a hybrid inverter.
The unit is designed for scaling, should your business's energy consumption grow. A robust moisture-resistant enclosure allows the equipment to be used in various conditions. In addition, DEYE GE-F60 withstands extreme temperatures well thanks to its built-in cooling system.
Storage system specifications
- Brand
- Deye
- Capacity
- 61,44 kWh
- Module capacity (Ah)
- 100 Ah
- Status indicators
- Yellow: high-voltage on / Red: alarm
- Number of battery modules in series
- 12
- Cell chemistry
- LiFePO₄
- Communication port
- CAN 2.0 / RS485
- Usable system energy (kWh)
- 55.29 kWh
- Module energy (kWh)
- 5.12 kWh
- Rated module voltage (V)
- 51.2 V
- Rated system voltage (V)
- 614.4 V
- Rated DC power (kW)
- 61,44 kW
- Rated current (A)
- 100
- Peak discharge current (A)
- 125 (2 min at 25°C)
- Enclosure rating
- IP55
- Recommended charge/discharge (A)
- 50
- System operating voltage (V)
- 480 ~ 700 V
- Operating temperature, °C
- -30°C to 60°C (derating >45°C)
- Dimensions (W × D × H, mm)
- 783 × 1059 × 2235
- Certifications
- UN38.3 / CB / CE / CEC / IEC 62040
- Humidity, %
- 5% – 85% relative humidity
- Height
- ≤2000m
- Mounting method
- Floor-standing
- Cycle life
- ≥6000 (25±2°C, 0.5C/0.5C, EOL 70%)
- Weight
- 1070 kg
