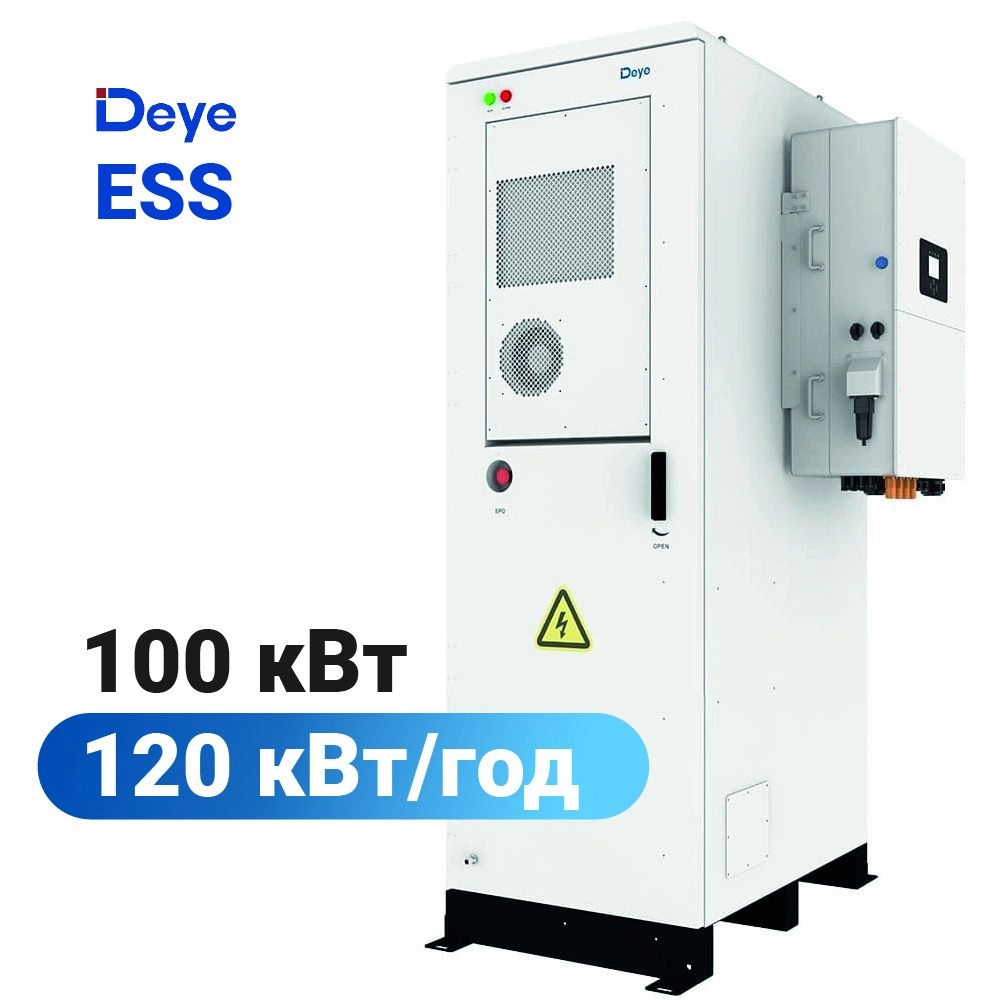

Deye ESS Energy Storage System, 100 kW / 120 kWh

Industrial storage systems

Deye ESS Energy Storage System, 100 kW / 120 kWh

Deye GE-F60-EU2

  • Battery Type : LiFePO4 — stability, safety, durability
  • Ingress Protection : IP55

DEYE GE-F60 is a compact, high-technology energy storage system for the commercial and industrial segment (C&I ESS) that combines reliable backup power, intelligent energy management and a high level of safety.

Description

DEYE GE-F60 is a compact, high-technology energy storage system for the commercial and industrial segment (C&I ESS) that combines reliable backup power, intelligent energy management and a high level of safety. The solution is ideally suited to businesses for which stable operation matters even in difficult conditions. With this equipment your business or production facility will become energy-independent, as the unit can start up even without a grid connection and operate in off-grid mode. It has integrated technologies that include an energy management system (EMS), battery control (BMS) and a hybrid inverter. The unit is designed for scaling, should your business's energy consumption grow. A robust moisture-resistant enclosure allows the equipment to be used in various conditions. In addition, DEYE GE-F60 withstands extreme temperatures well thanks to its built-in cooling system.

Storage system specifications

Battery Type
: LiFePO4 — stability, safety, durability
Brand
Deye
Module capacity
: 5.12 kWh
Dimensions and weight
: 780×1056×2235 mm, approximately 1.2 t
Ingress Protection
: IP55
Certifications
: CE, IEC62619, IEC62040, UN38.3 — compliance with international standards
Charge/discharge current
: recommended 50 A, rated 100 A, peak — 125 A (2 min at 25 °C)
Operating conditions
: charging — from 0 to 55 °C, discharging — from -20 to 55 °C
Humidity and altitude
: up to 85 % humidity and up to 2000 m above sea level
Total system capacity
: 61.44 kWh, usable — 55.29 kWh
Mounting
: Floor-standing, easy to install and maintain
Service life
: over 6000 cycles at a temperature of 25 °C (±2 °C) and a rate of 0.5 C
Warranty
: 10 years
