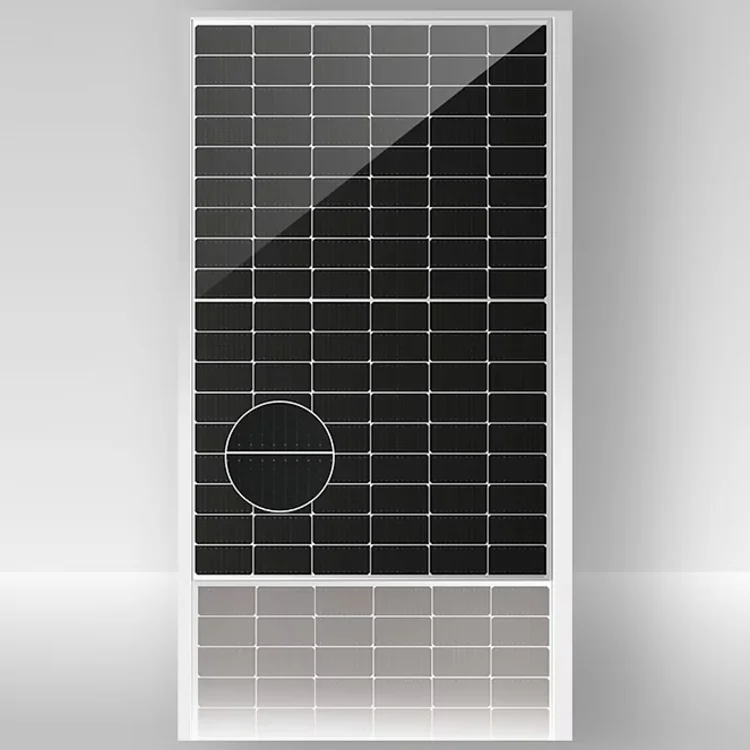

SWI Solar SWI66D50-720/HJT Bifacial Solar Panel, 720 W
- Dimensions 2384x1303x35 mm.
- Weight 38 kg
SWI Solar SWI66D50-720/HJT is a high-performance premium-class bifacial solar panel created for commercial and industrial solar power plants.
Description
SWI Solar SWI66D50-720/HJT is a high-performance premium-class bifacial solar panel created for commercial and industrial solar power plants. Thanks to advanced HJT technology (heterojunction cells) and an output of 720 W, it delivers maximum energy yield even in difficult light conditions.
This solar panel model generates energy from both sides thanks to bifacial technology. An additional 5-25% of generation can be obtained from the rear side, which captures solar energy from the reflected light flux.
The double glass of the panel makes it more durable and more resistant to mechanical damage and weather conditions. It will become an indispensable element of solar power plants, as it is compatible with the vast majority of inverters. In a word, it is an excellent choice for large-scale projects where every kilowatt-hour counts.
Panel specifications
- Brand
- SWI Solar
- Dimensions
- 2384x1303x35 mm.
- Power tolerance
- 0-+5
- Module efficiency, %
- 23.18%
- Number of cells
- 132 (6x22)
- Max. power (Pmax/W)
- 720
- Model
- SWI66D50-720/HJT
- Open-circuit voltage (Voc/V) (Imp/A)
- 50.50
- Voltage at maximum power point
- 42.3
- Junction box
- IP68
- Standard test conditions – irradiance
- 1000 W/m²,
- Short-circuit current (Isc/A)
- 18.30
- Current at maximum power point (Vmp/V)
- 17.02
- Cell temperature
- 25°C, spectrum: AM1.5
- Cell type
- 210 HJT
- Output cable
- 4 mm.
- Weight
- 38 kg
- Connector
- MC4-EVO2
