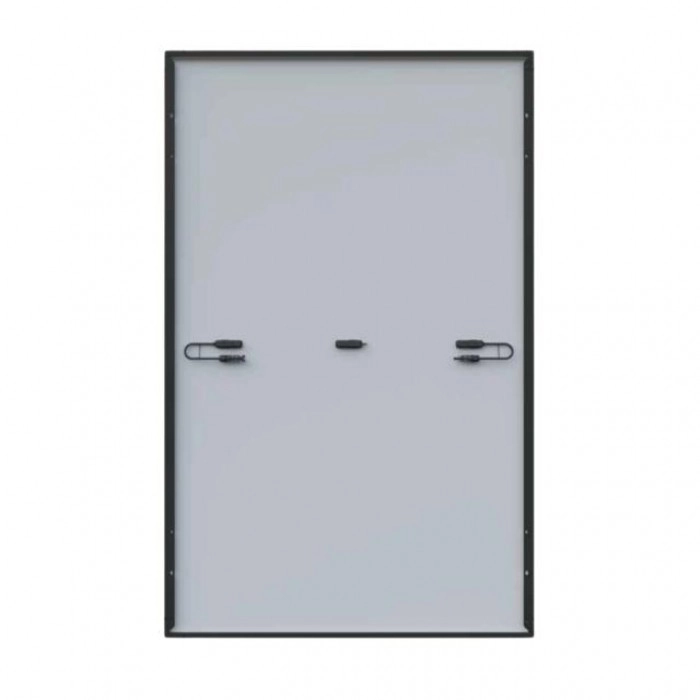

Longi LR7-54HVH-480M Solar Panel
- Weight 21.6
LONGi LR7-54HVH-480M is a modern high-efficiency photovoltaic module created using advanced technologies for maximum energy generation.
Description
LONGi LR7-54HVH-480M is a modern high-efficiency photovoltaic module created using advanced technologies for maximum energy generation. The panel combines an innovative cell architecture, reliability and stable operation in various climatic conditions.
This photovoltaic module suits different types of facilities: private houses, businesses and industry, as well as rooftop and ground-mounted solar power plants. The panel copes well with adverse natural phenomena such as wind, snow and rain. Thanks to N-type technology, the solar panel maintains a high efficiency figure even in cloudy weather. The LONGi LR7-54HVH-480M solar panel is designed to generate energy in various climatic conditions and withstands temperature swings well.
Panel specifications
- Brand
- Longi
- Length, mm
- 1800.0
- Warranty, years
- 12
- Quantity per pallet, pcs
- 36
- Number of cells in series
- 108
- Max. system voltage, V
- 1500
- Max. operating temperature, +°C
- 85
- Min. operating temperature, -°C
- 40
- Rated voltage, V
- 33.28
- Open-circuit voltage, V
- 40.29
- Rated power, W
- 480.0
- Panel frame
- Anodized aluminium
- Width, mm
- 1134.0
- Short-circuit current, A
- 15.13
- Rated current, A
- 14.43
- Thickness, mm
- 30.0
- Panel type
- Monocrystalline
- Connector type
- Cable
- Weight
- 21.6
