DHT-M56X10-420W 2X Solar Panel + DHN-SU800D-G0 Solar Inverter
- Power 800 W
- Dimensions 1766 x 1132 x 32 mm
- Weight 46,8 kg

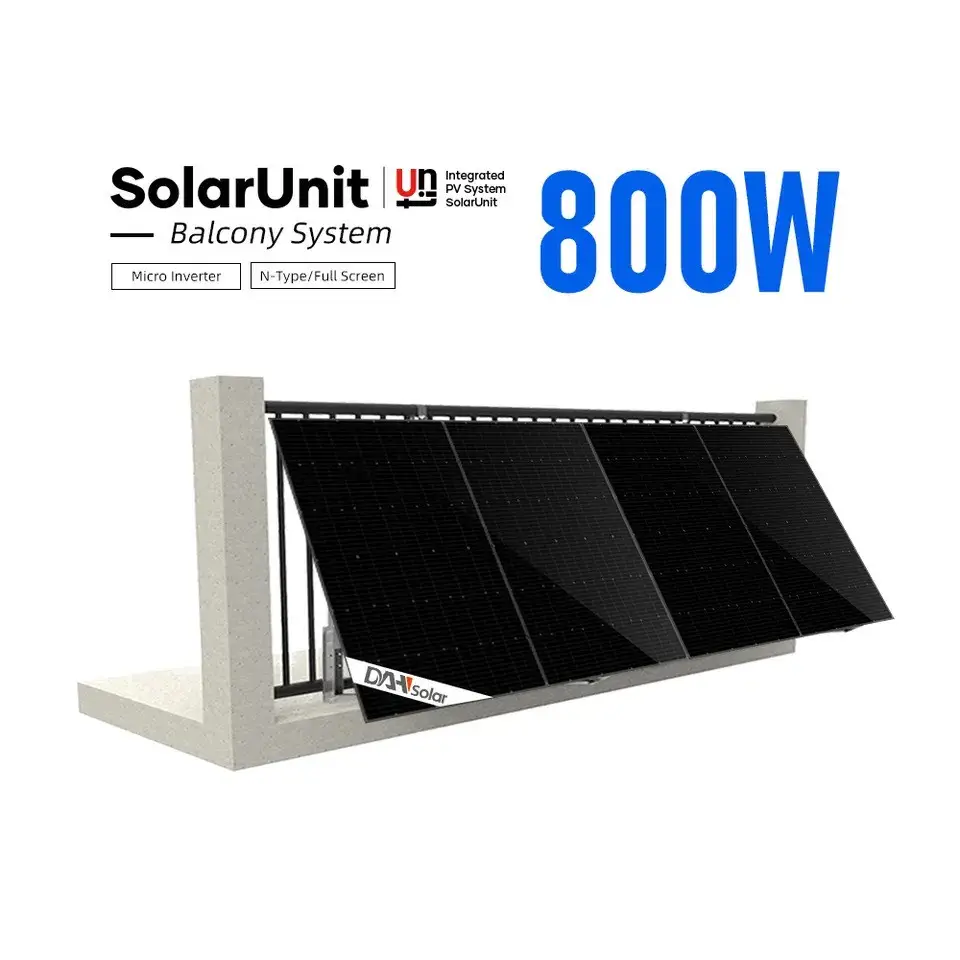

SolarUnit from DAH Solar is an innovative integrated solar system. It combines a photovoltaic module and a microinverter in a single unified device.
Description
SolarUnit from DAH Solar is an innovative integrated solar system. It combines a photovoltaic module and a microinverter in a single unified device. This approach delivers maximum efficiency and considerably simplifies the installation process. Thanks to the patented full-screen technology, the module is able to increase electricity generation by 6–15%, while the overall system efficiency reaches up to 97.5%.

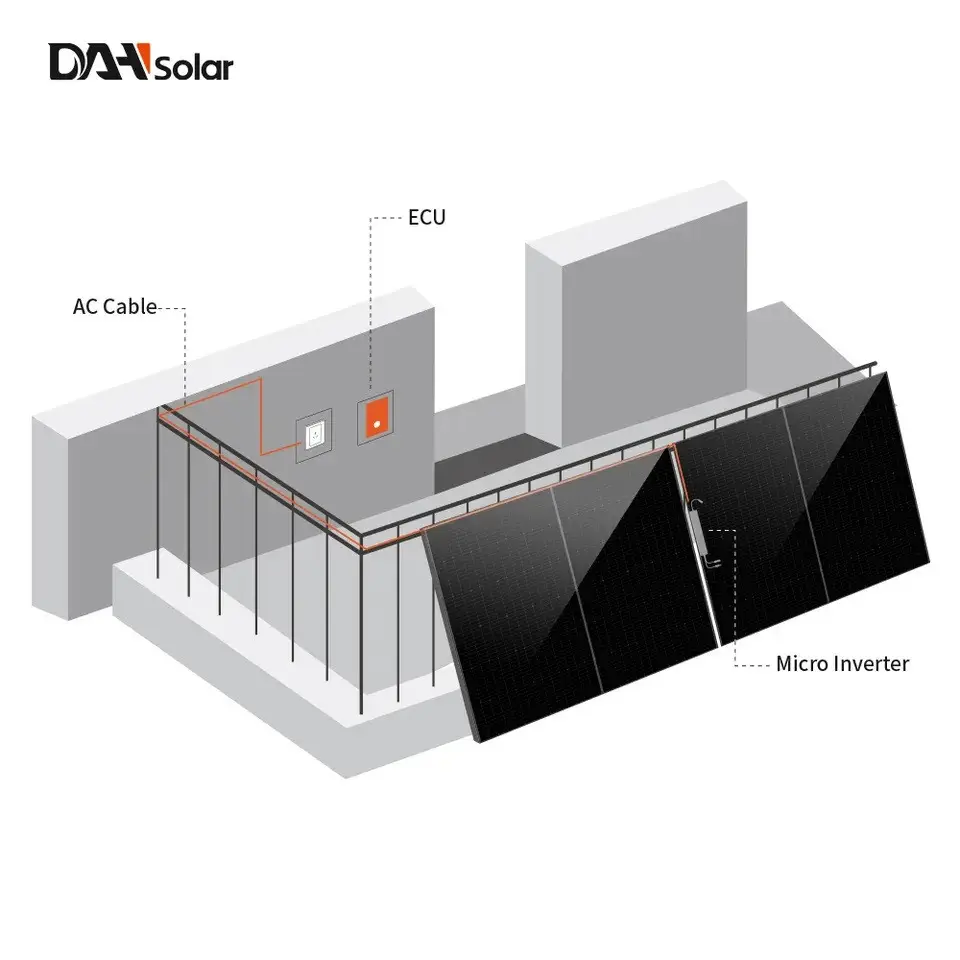

This is the optimal choice for anyone looking for a compact and efficient solar system for a balcony, an apartment, a private house or a small business. It requires virtually no installation work, because the module and the inverter are already connected to each other at the factory, so on site an ordinary connection of the system is enough. In addition, each module can operate independently, so the panels can be placed at different angles to achieve maximum generation.
The system can be managed through the "cloud" - monitor its operation or switch it off remotely. If you have long wanted to switch to solar energy, this is the ideal option for anyone who wants to do without complex technical solutions.
Panel specifications
- Battery Type
- TOPCon, Double-glass, Half-cell
- Brand
- DAH Solar
- Frequency
- 50/60 Hz
- Country
- China
- Dimensions
- 1766 x 1132 x 32 mm
- MPPT efficiency
- 99,95%
- Ingress Protection
- IP66
- Model
- SolarUnit
- Operating Temperature
- -40 ~ +65 °C
- Peak efficiency
- 97,16%
- Power
- 800 W
- Application area
- For an apartment, for a house
- Current at maximum power
- 4 A
- Weight
- 46,8 kg
