Inverters

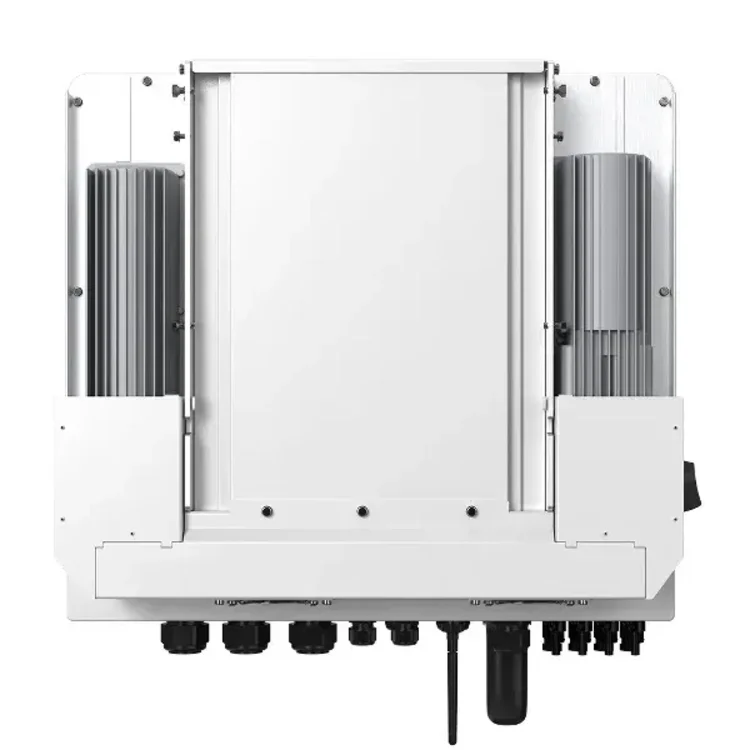

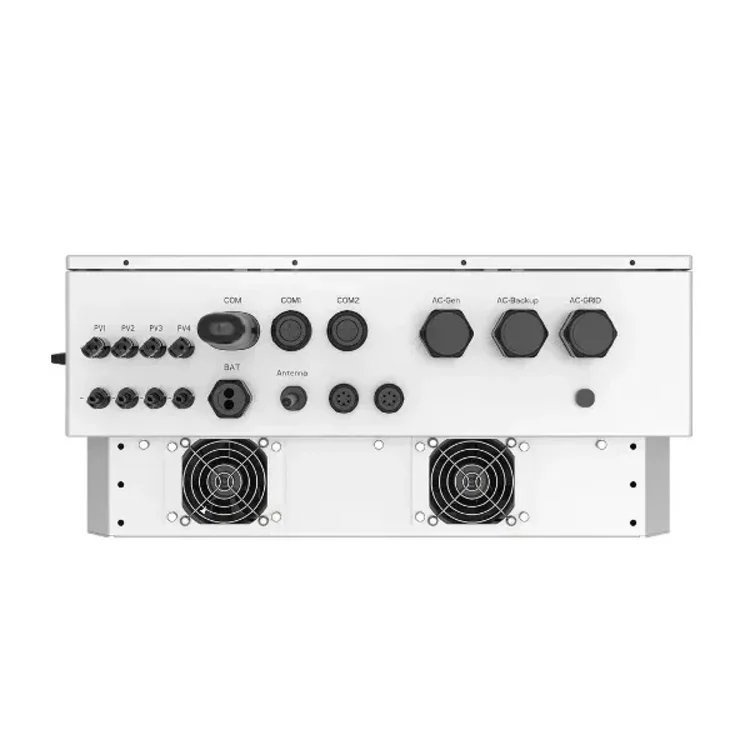

Solis S6-EH3P20K-H Hybrid Inverter, 20 kW

Solis S6-EH3P20K-H

  • Ingress Protection IP66

Solis S6-EH3P20K-H is a modern three-phase hybrid inverter with a power of 20 kW, intended for building efficient solar power plants with energy storage capability.


Description

Solis S6-EH3P20K-H is a modern three-phase hybrid inverter with a power of 20 kW, intended for building efficient solar power plants with energy storage capability. It combines the functions of a grid-tied inverter and a battery management system, providing energy independence and a stable power supply for the facility. This type of inverter is ideal for regions with an unstable power supply, because it automatically switches from the grid to the batteries and can store electricity in order to release it later during blackouts. This equipment is suitable for large private houses, businesses, the agricultural sector and manufacturing. Their advantage is that such inverters make it possible to scale the system, increasing both the power and the amount of stored electricity. An optimal choice for those who want to combine savings on electricity bills with partial autonomy from outages.

Inverter specifications

Brand
Solis
Operating temperature range
-25 ℃ ~ +60 ℃
Relative humidity range
0-95%
Ingress Protection
IP66
Cooling concept
Intelligent fan cooling
Max. operating altitude
2000m
Noise level
<65 dB (A)
Dimensions (W/H/D)
563 × 546 × 250 mm
Self-consumption (night)
<25W
Safety standard / EMC
IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Grid connection standard
EN 50549-1/-10, VDE4105, CEI 0-21, CEI 0-16, NC-RFG TypeB , NRS 097-2-1, LTU-1, G99, PEA
Topology
Transformerless
Weight
35,2 kg
