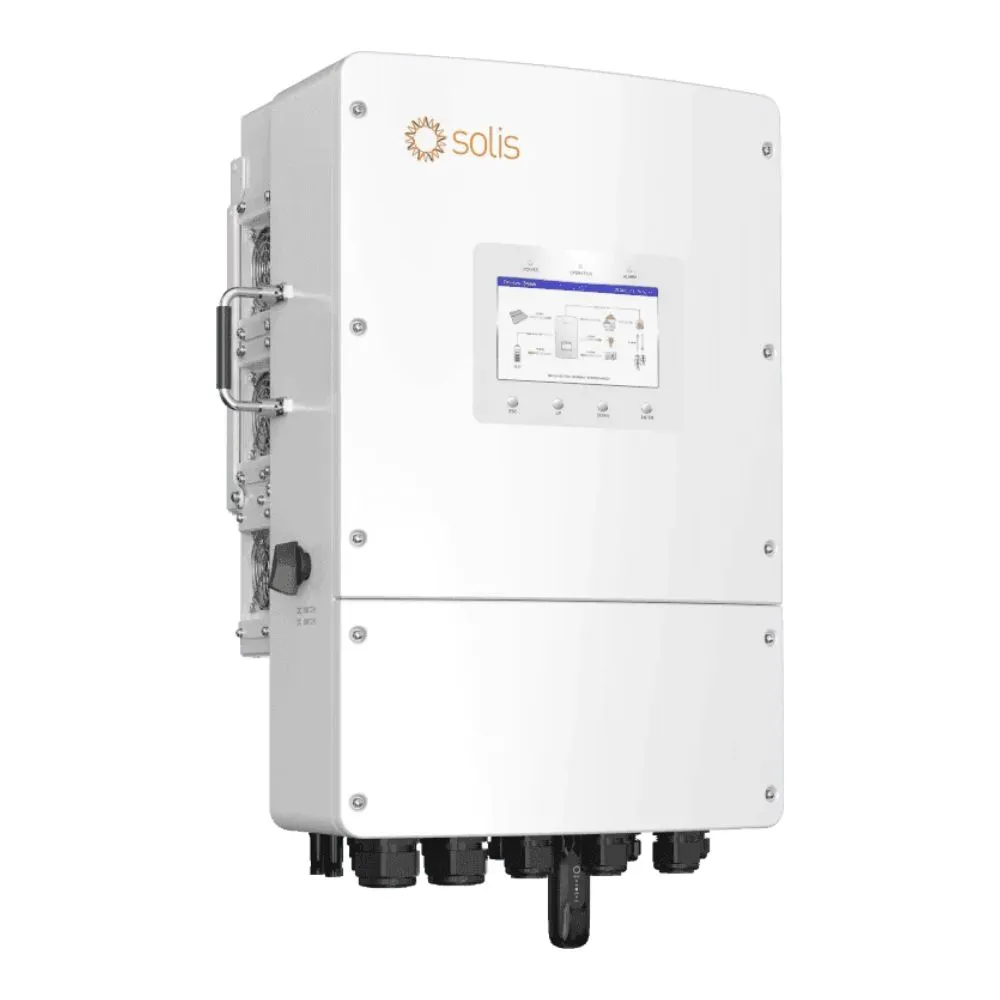

SOLIS S6-EH3P10K02-NV-YD-L Hybrid Inverter, 10 kW
- MPPT 200-850 V
Solis S6-EH3P10K02-NV-YD-L is a modern three-phase hybrid inverter with a power output of 10 kW, intended for building efficient energy generation and storage systems.
Description
Solis S6-EH3P10K02-NV-YD-L is a modern three-phase hybrid inverter with a power output of 10 kW, intended for building efficient energy generation and storage systems. It combines operation with the grid, solar panels and batteries, providing a stable power supply even during outages.
One of the main advantages of this type of inverter is that it can run completely off-grid, and not only with the grid or batteries. During long outages, a generator can be connected to it to provide real autonomy and independence from power cuts. In essence, such an inverter becomes an uninterruptible power source for your private house or business.
The presence of 2 MPPTs makes it possible to connect solar panels at different tilt angles and to optimise generation even in shaded conditions. The equipment can be controlled remotely via the SolisCloud online platform: change settings, monitor operating efficiency and follow the statistics.
Inverter specifications
- Battery
- Battery type – Lithium-ion / lead-acid
- Brand
- Solis
- Battery voltage range
- 40-60 V
- Screen
- LCD + Bluetooth + APP
- Functions
- DC connection – MC4 plug for quick connection (PV) & screw terminal (Battery)
- Number of MPPT / max. inputs per MPPT
- 2/3
- Max. usable input power
- 16 kW
- Max. short-circuit current
- 30 A / 50 A
- Max. input current
- 20 A / 40 A
- Max. input voltage
- 1000 V
- Max. installation altitude
- 4000 m
- Max. charge / discharge current
- 220 A
- MPPT
- 200-850 V
- AC connection
- Screw terminal
- Start-up voltage
- 160 V
- Safety standard / EMC
- IEC/EN 62109-1/-2, EN 61000-6-2/-3
- Grid connection standard
- NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA
- Cooling type
- Fan with intelligent speed control
- Voltage
- 550 V
- Communication
- CAN/RS485
- Communication – CAN, RS485, Ethernet, optional
- Wi-Fi, Cellular, LAN
