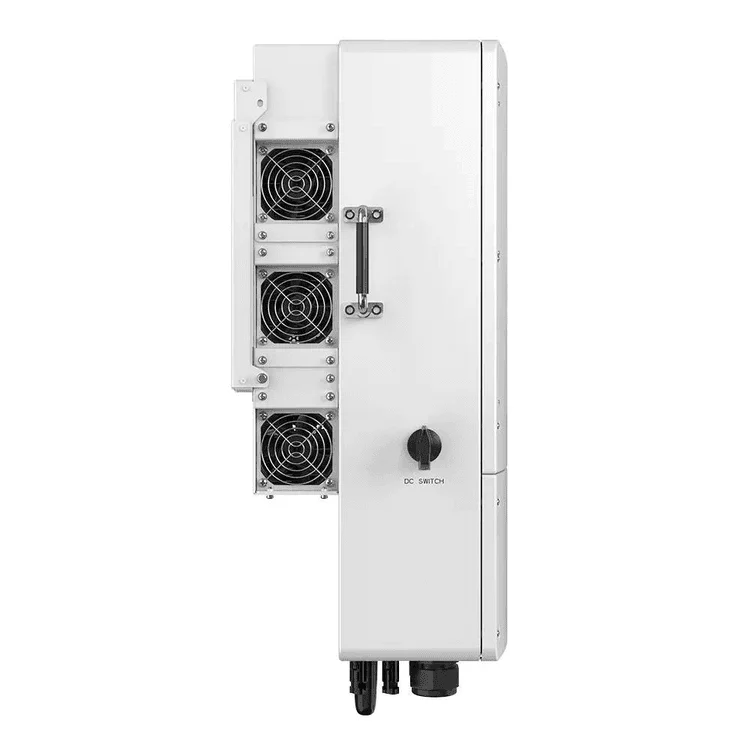

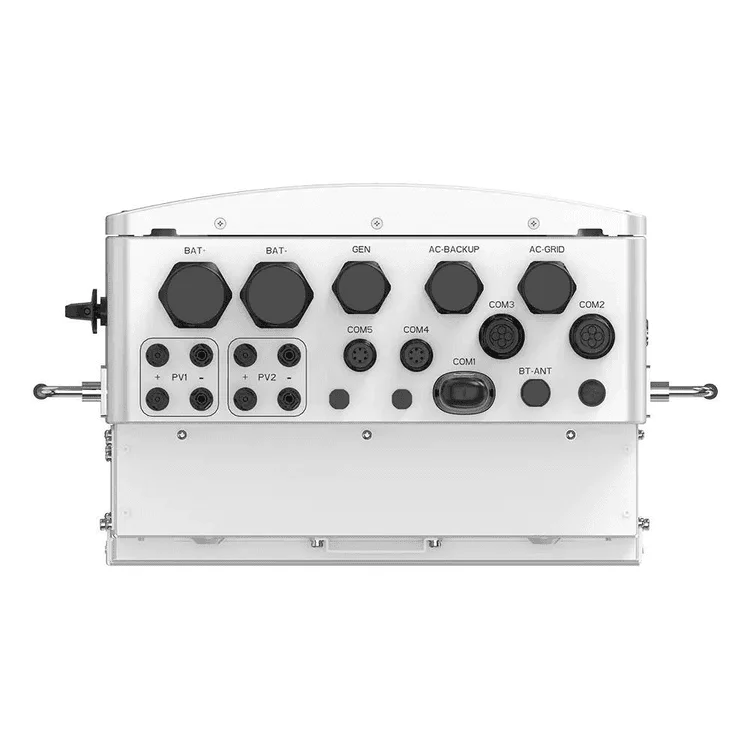

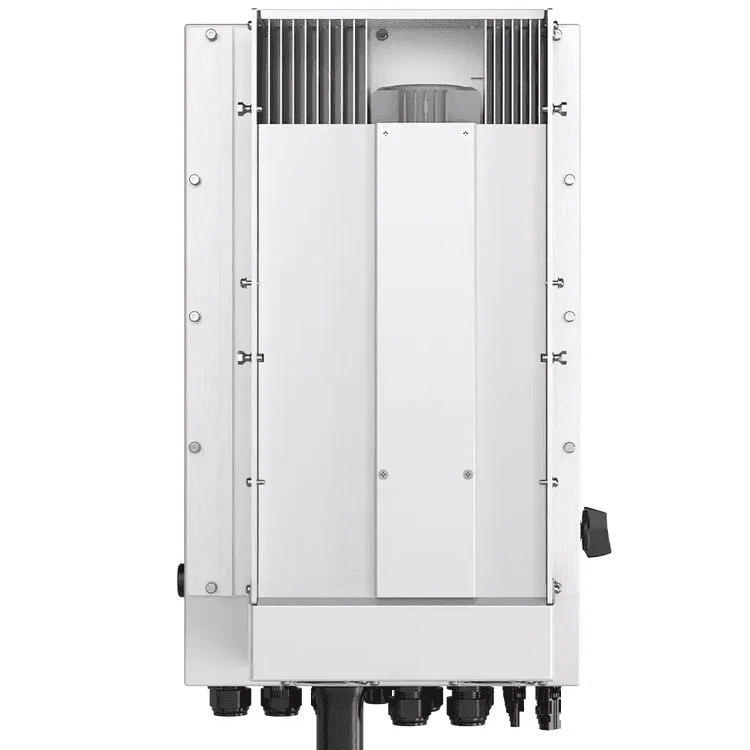

SOLIS S6-EH1P8K-L-PLUS Hybrid Inverter
- Power 8 kW
- MPPT 2 independent MPPT trackers
- Efficiency Up to 98.4%
Solis S6-EH1P8K-L is a hybrid inverter with a power of 8 kW, created for residential and commercial solar power plants with energy storage capability.
Description
Solis S6-EH1P8K-L is a hybrid inverter with a power of 8 kW, created for residential and commercial solar power plants with energy storage capability. It combines generation, storage and backup power functions, which makes it the optimal solution for private houses during outages. It will also help your business run without interruption even during blackouts.
When grid electricity fails, the inverter automatically switches to battery power. An additional benefit is that you can gradually increase the system capacity in order to reach full energy independence.
Thanks to the two built-in MPPT trackers in this unit, your solar power plant will operate as efficiently as possible. The inverter is compact and wall-mounted, so it can be conveniently placed even in a small private house.
Inverter specifications
- Brand
- Solis
- Output frequency
- 50/60 Hz (automatic setting)
- PV input voltage range
- 90-500 V direct current (DC)
- Dimensions
- 335*560*227 mm
- Display
- Large colour LCD display for easy control and monitoring of operating parameters
- Efficiency
- Up to 98.4%
- Output waveform
- Pure sine wave
- Communication interfaces
- RS485, CAN, Wi-Fi/GPRS (optional) for remote monitoring via a mobile app or PC
- Max. solar panel power
- Up to 12 kW
- Max. operating altitude
- 3000 m
- Max. battery charge current
- 180 A
- MPPT
- 2 independent MPPT trackers
- Cooling
- Natural cooling and built-in fans for efficient heat dissipation
- Operating Temperature
- 40 ~ +60°C
- Power
- 8 kW
- Noise level
- ≤ 30 dB, ensuring quiet operation
- Cooling method
- Intelligent fan cooling
- Safety standard
- EMC IEC/EN 62109-1/-2, EN 61000-6-2/-3
- Grid connection standard
- NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA
- Operating temperature range
- from -25°C to +60°C, which allows the inverter to be used in various climatic conditions
- Topology
- High-frequency isolation (for the battery)
- Battery type
- Compatible with lithium-ion and lead-acid batteries
- Inverter type
- Hybrid inverter supporting on-grid and off-grid operation
- Battery system input voltage
- 48 V direct current (DC)
- Output voltage
- 230 V alternating current (AC), single-phase system
- Weight
- 22.2 kg
- Protection
- Built-in protection against short circuit, over-voltage, overload, overheating, reverse polarity protection
- Moisture ingress protection
- IP66
