Inverters

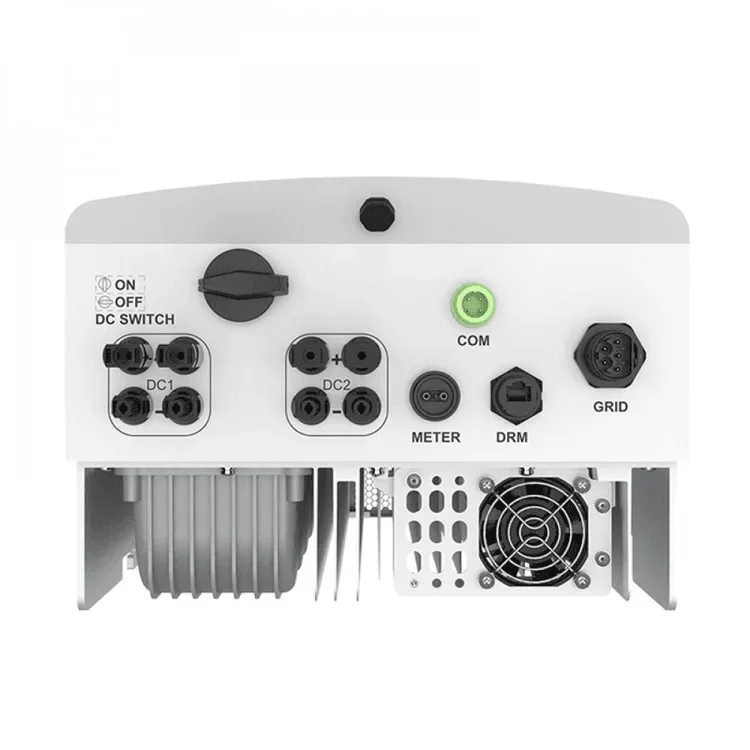

Solis S5-GR3P15K Grid-Tie Inverter, 15 kW

Solis S5-GR3P10K-2

  • Power 15 kW
  • Ingress Protection IP66

Solis S5-GR3P15K is a modern three-phase grid-tied inverter with a rated power of 15 kW, developed for the efficient operation of solar power plants in the residential, commercial and small industrial segments.


Description

Solis S5-GR3P15K is a modern three-phase grid-tied inverter with a rated power of 15 kW, developed for the efficient operation of solar power plants in the residential, commercial and small industrial segments. The model combines high performance, reliability and extended functionality for stable electricity generation.

The model is equipped with a set of protections:

  • against short circuit
  • grid monitoring
  • against overheating
  • AFCI technology (reduces the risk of fire)
This device can be used even in regions with unstable voltage, since the equipment independently "absorbs" power surges. In addition, you will be able to monitor the inverter remotely thanks to the SolisCloud platform, where you can track generation and manage the equipment from a distance. Among the main advantages of the Solis S5-GR3P15K inverter are efficient operation across a wide temperature range (from -25 to +60 degrees Celsius), as well as simple installation and maintenance.

Inverter specifications

Brand
Solis
Dimensions
310*563*219 mm
Power factor
>0.99 (0.8 leading – 0.8 lagging)
Ingress Protection
IP66
Cooling concept
Intelligent redundant fan cooling
Max. operating altitude
2000 m
Max. AC input voltage
400
Max. apparent output power
15 kVA
Max. output power
15 kW
Max. output current
23,8 A
Rated grid frequency
50 Hz
Rated grid voltage
230 V / 400 V
Rated input voltage
380
Rated output power in inverter mode
15000
Rated apparent output power
15 kVA
Rated grid output current
21,7 A
Operating Temperature
-25 ~ +60°C
Power
15 kW
Self-consumption (night)
<1 W
Grid connection standard
AS/NZS 4777.2:2020, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530
Topology
Transformerless
Relative humidity
0-100%
Weight
18.8 kg
