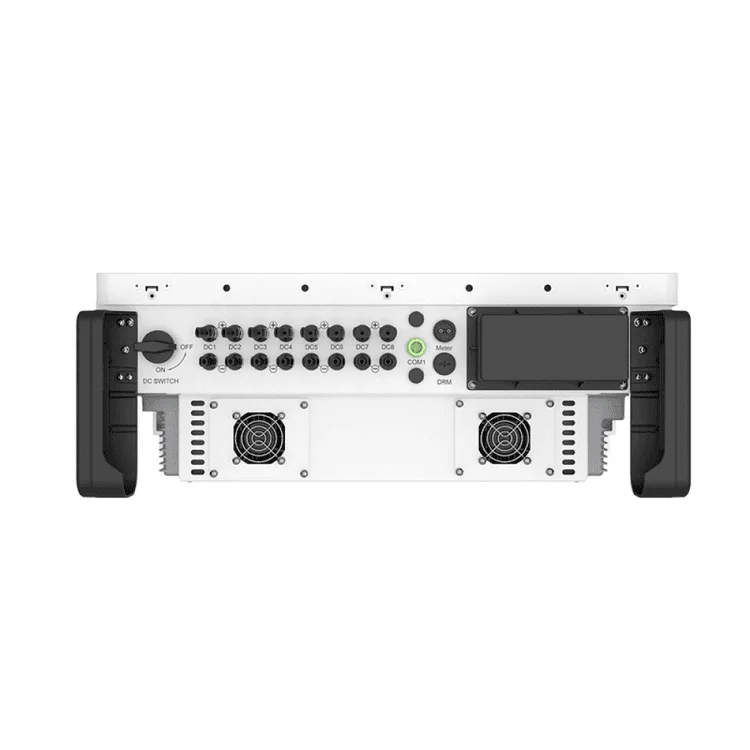

Solis S5-GC30K Grid-Tie Inverter, 30 kW
- Power 30 kW
- Ingress Protection IP66
Solis S5-GC30K — a powerful 30 kW three-phase grid-tied inverter created for stable operation of solar power plants in the commercial and industrial segment.
Description
Solis S5-GC30K — a powerful 30 kW three-phase grid-tied inverter created for stable operation of solar power plants in the commercial and industrial segment. The model combines high efficiency, flexible connection options and reliability in demanding operating conditions.
This is the ideal solution for commercial solar power plants, as it is designed for small production sites, business facilities, and rooftop or ground-mounted plants. Because the inverter withstands high input current values, it can be connected to modern high-power large-format solar panels.
This equipment is fitted with a full set of protections:
- against overvoltage and short circuit
- grid parameter monitoring
- overheating protection
- AFCI function (arc fault protection)
Inverter specifications
- Brand
- Solis
- Dimensions
- 647*629*252 mm
- Power factor
- >0.99 (0.8 leading – 0.8 lagging)
- Ingress Protection
- IP66
- Cooling concept
- Intelligent redundant fan cooling
- Max. apparent output power
- 33 kVA
- Max. operating altitude
- 4000 m
- Max. output power
- 33 kW
- Max. output current
- 50,2 A
- Rated grid frequency
- 50 Hz / 60 Hz
- Rated grid voltage
- 3/N/PE, 220 V/380 V, 230 V/400 V
- Rated input voltage
- 380/400
- Rated output power in inverter mode
- 30000
- Rated grid output current
- 45,6 A / 43,3 A
- Operating Temperature
- -25 ~ +60°C
- Power
- 30 kW
- Self-consumption (night)
- <1 W
- Grid connection standard
- AS/NZS 4777.2:2020, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530
- Topology
- Transformerless
- Relative humidity
- 0-100%
- Weight
- 37 kg
