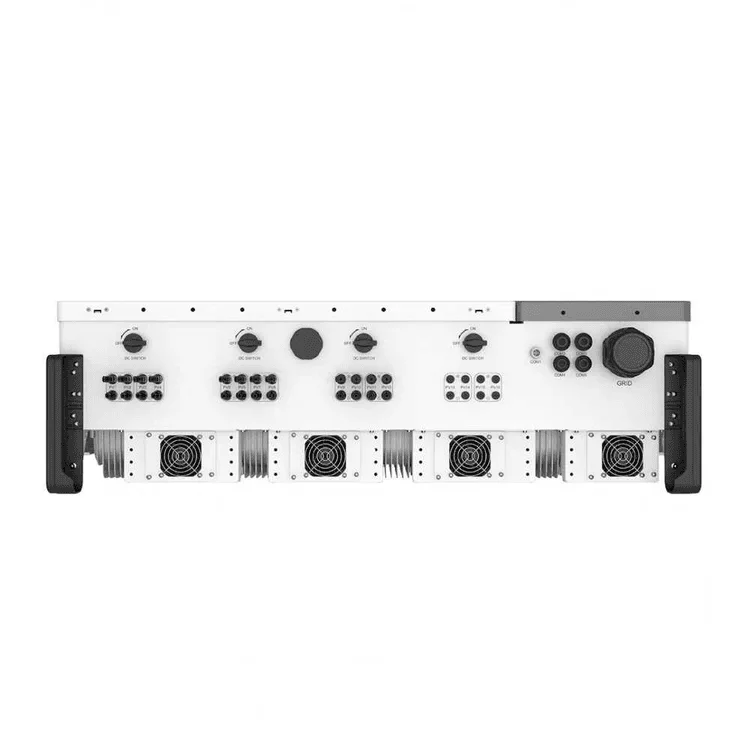

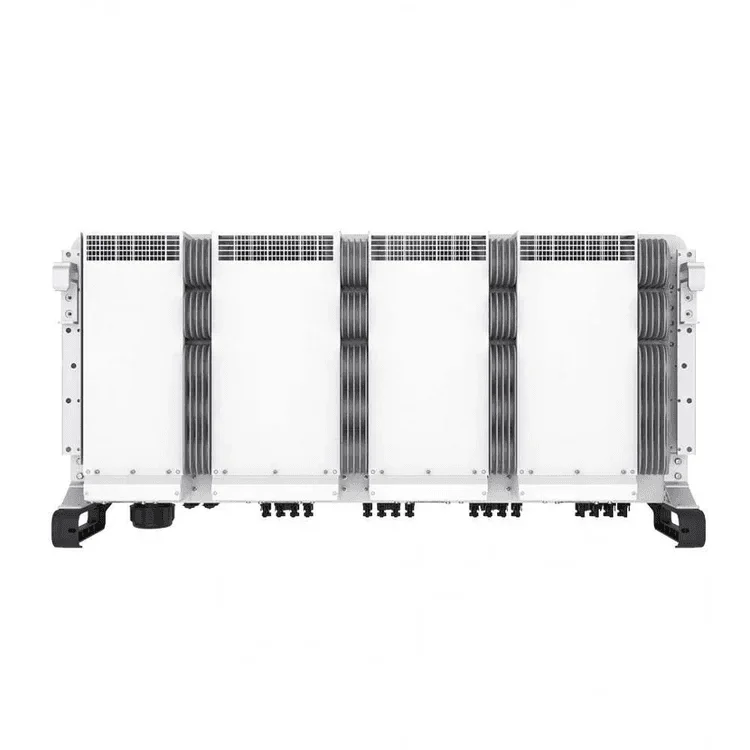

Solis 100K 5G-PRO Grid-Tie Inverter, 100 kW
- MPPT 180-1000 V
Solis 100K-5G-PRO is a high-performance three-phase grid-tied inverter with a power rating of 100 kW, developed for large commercial and industrial solar power plants.
Description
Solis 100K-5G-PRO is a high-performance three-phase grid-tied inverter with a power rating of 100 kW, developed for large commercial and industrial solar power plants. The model delivers maximum energy generation, flexibility in system configuration and a high level of safety.
Even with different module orientations, this inverter optimizes energy output. The equipment will work even in demanding conditions, as it has a well-designed safety system:
- AFCI — protection against arc faults (fire risk)
- protection against overvoltage and short circuit
- anti-islanding mode
- leakage current monitoring
- optional PID recovery
Inverter specifications
- Brand
- Solis
- Dimensions
- Dimensions (W * H * D): 1065*567*344.5 mm
- Screen
- LCD display
- Number of MPPT / max. inputs per MPPT
- 10/20
- Max. short-circuit current
- 10*40 V
- Max. input current
- 10*26 V
- Max. input voltage
- 1100 V
- Max. installation altitude
- 4000 m
- MPPT
- 180-1000 V
- Operating Temperature
- -25 ~ + 60 °C
- Optional
- Wi-Fi, GPRS, PLC
- DC connection
- MC4 connector
- AC connection
- OT terminal (max. 185 mm)
- Start-up voltage
- 195 V
- Safety standard / EMC
- EC / EN 62109-1 / -2, IEC / EN 61000-6-2 / -4
- Grid connection standard
- VDE-AR-N 4105, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99, EN 50549-1/-2, RD 1699, UNE 206006, UNE 206007-1, IEC61727,DEWA
- Cooling type
- Fan with intelligent speed control
- Relative humidity
- 0-100%
- Self-consumption (night)
- <2 W.
- Voltage
- 600 V
- Weight
- 84 kg
- IP protection
- IP66
- Communication
- RS485,
