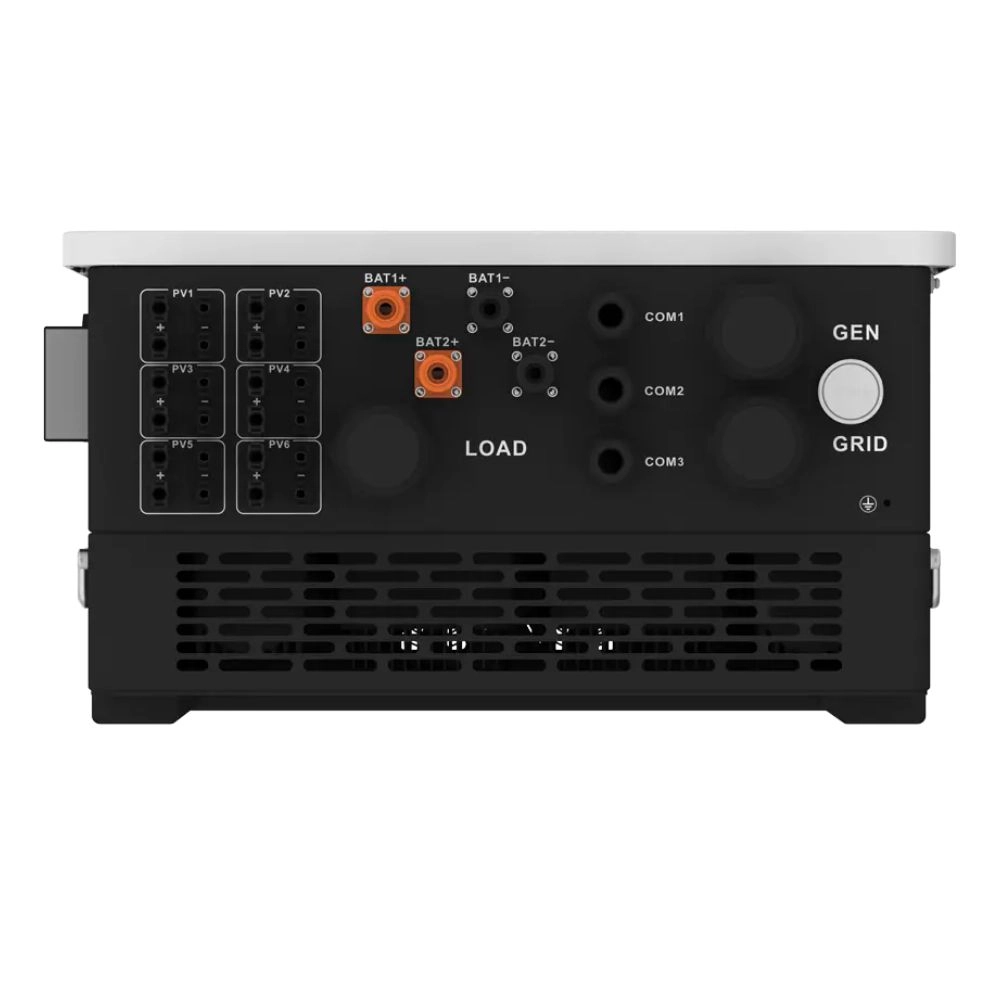

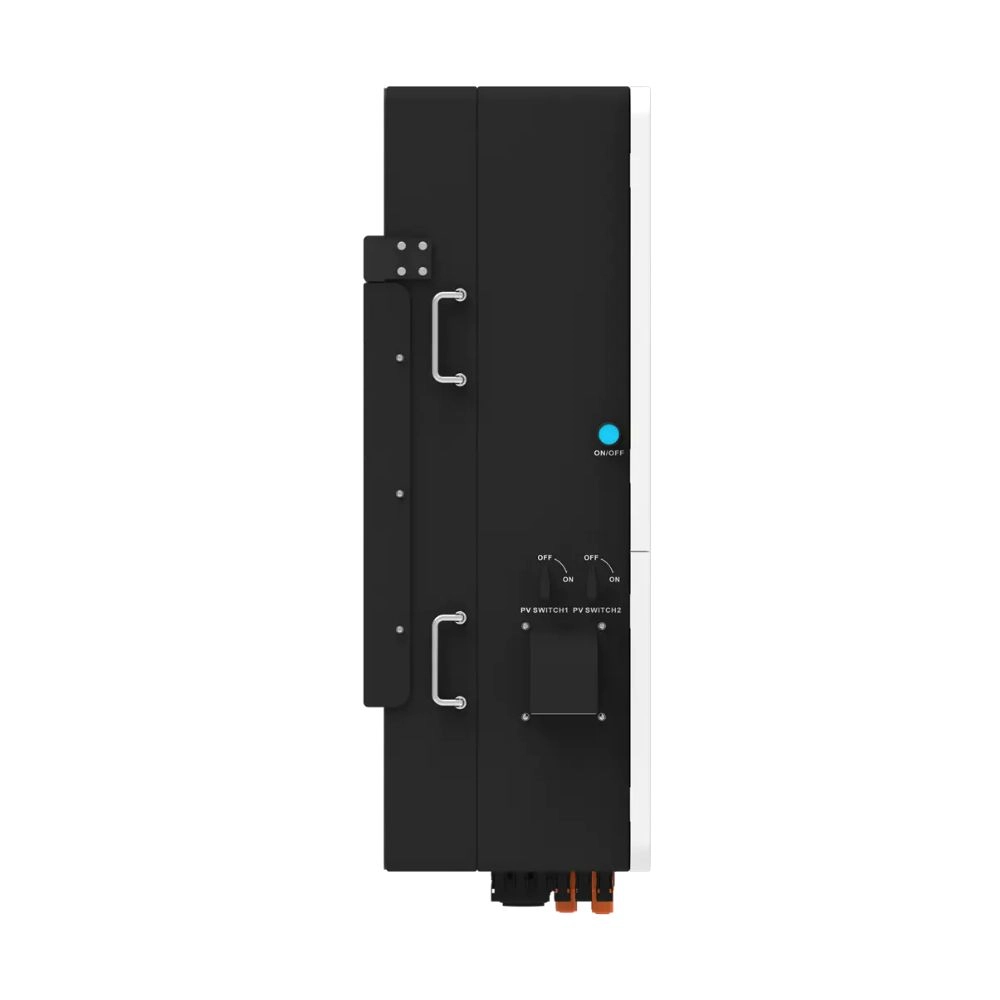

Deye SUN-80K-SG02HP3-EU-EM6 Hybrid Inverter
- Power 128000
- Phases 3
- MPPT 6/2
- Ingress Protection IP65
Deye SUN-80K-SG02HP3-EU-EM6 is a powerful three-phase hybrid inverter created for use in large solar power systems. It combines a modern hybrid architecture, high efficiency and extensive connectivity, providing a stable and flexible power…
Description
Deye SUN-80K-SG02HP3-EU-EM6 is a powerful three-phase hybrid inverter created for use in large solar power systems. It combines a modern hybrid architecture, high efficiency and extensive connectivity, providing a stable and flexible power supply for business and industry.
The inverter supports both grid-tied and off-grid operation, making it possible to manage energy from different sources efficiently — solar panels, batteries, the utility grid and generators.
Inverter specifications
- Brand
- Deye
- Frequency, Hz
- 50/60
- Operating voltage range, V
- 150~850
- Input voltage range, V
- 150~850
- Waveform
- correct
- Dimensions, mm
- 606×927×314
- Warranty, months
- 60
- Ingress Protection
- IP65
- Interface
- RS485,CAN, WiFi/GPRS (optional)
- Efficiency, %
- 97.6
- Country of manufacture
- China
- Max. voltage, V
- 1000
- Max. AC input voltage
- 500
- Max. MPPT tracker current, A
- 54+54+54+54+54+54
- Max. current, W
- 54A+54A+54A+54A+54A+54A
- Max. charge current, A
- 80+80 per each battery module unit
- Max. charge current from PV/grid, A
- 80A , discharge current 80A
- Max. AC input current
- 121.3/133.4 (maximum)
- Model
- SUN-80K-SG02HP3 -EU-EM6
- MPPT
- 6/2
- MPPT voltage range, V
- 150~850
- Battery voltage, V
- 160-800
- Rated voltage, V
- 650
- Rated power, W
- 80000
- Rated input voltage
- 380
- Rated output power in inverter mode
- 80000
- Cooling
- smart cooling
- Phases
- 3
- Power
- 128000
- Operating temperature range, °C
- -40~60℃
- Inverter type
- hybrid
- Input current, A
- 36+36+36+36+36+36
- Humidity, %
- 0...100
- Output voltage, V
- 220/380
- Output current, A
- 115.9/127.6(max.)
- Weight
- 97.5
