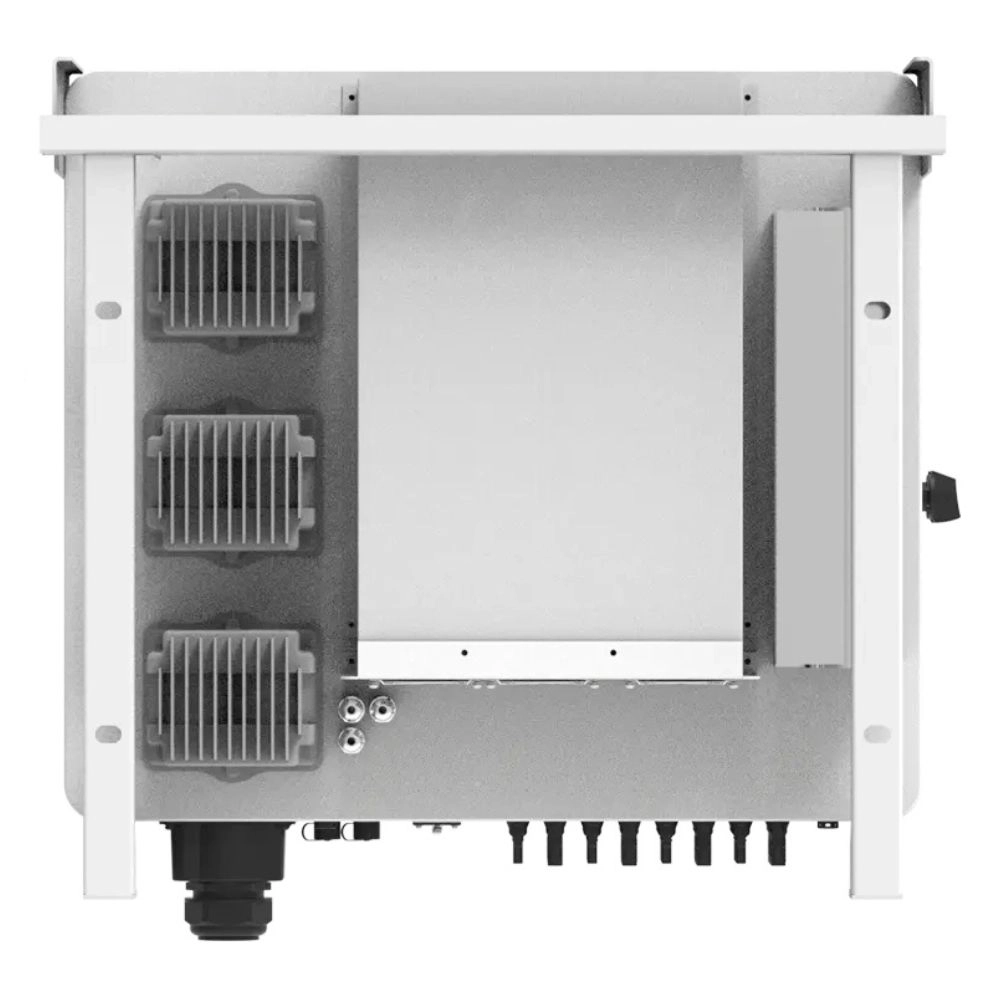

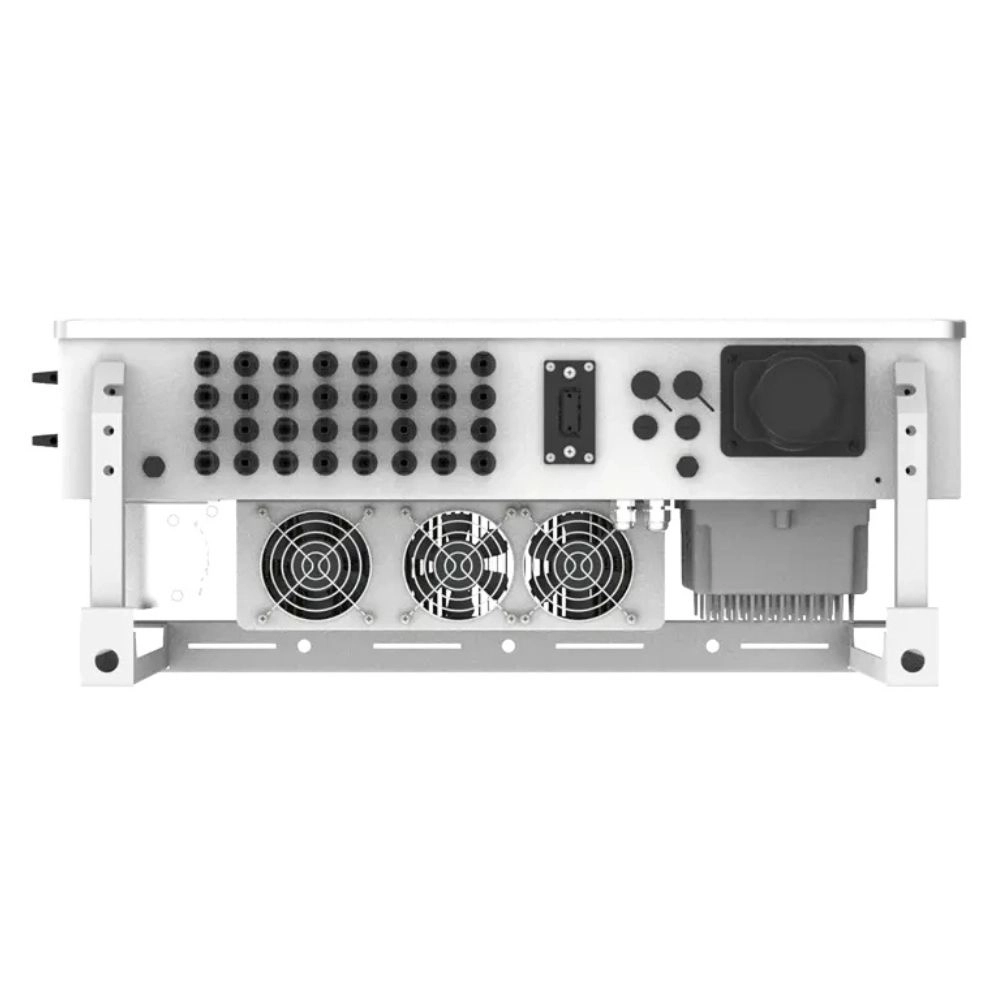

Deye SUN-80K-G04P3-EU-AM4 Inverter String 80KW

The Deye SUN-80K-G04P3-EU-AM4 grid-tie inverter is a high-performance solution for industrial and commercial solar power plants that combines maximum efficiency, reliability and modern control functions. The device is designed for stable operation in large energy systems and delivers maximum return from every installed photovoltaic module.

One of the main advantages of the inverter is its high efficiency of up to 98.7% (European - 98.1%), which makes it possible to minimise energy losses and ensure the most efficient conversion of solar radiation into electricity. Thanks to this, the system works stably even in changeable weather conditions.

The inverter is equipped with advanced MPPT technology with an efficiency of more than 99%, which guarantees continuous operation at the maximum power point. A wide MPPT voltage range of 200-1000 V allows flexible selection of solar panel configurations and optimisation of energy generation in any conditions.

The model supports a rated power of 80 kW with a maximum output of up to 88 kVA, which makes it an ideal solution for facilities with high energy consumption. Support for a three-phase 3L/N/PE connection and compatibility with 220/380 V and 230/400 V grids ensure easy integration into existing electrical networks.

Particular attention has been paid to safety: the inverter features a comprehensive protection system that includes protection against reverse polarity, overload, overvoltage and overheating, as well as leakage current monitoring and ground fault detection. Surge protection (SPD type II) is additionally provided for both direct and alternating current.

The device is adapted to work in demanding environmental conditions. It operates reliably in a temperature range from –25 °C to +60 °C, has an IP65 protection rating and a low noise level (<50 dB), which allows it to be installed both indoors and outdoors.

For user convenience, the inverter supports extended monitoring and connectivity options: Wi-Fi, GPRS, Bluetooth, 4G, LAN (optional), as well as RS485/RS232 interfaces. This makes it possible to track system operation in real time, analyse performance and manage parameters promptly.

Compact dimensions and an optimised design considerably simplify installation and maintenance, while compliance with the international IEC, G99 and VDE standards guarantees safe operation and compatibility with the requirements of different power grids.

Deye SUN-80K-G04P3-EU-AM4 is a reliable basis for creating efficient, scalable and durable solar power plants capable of providing stable power supply even for the most energy-intensive facilities.
