Deye SUN-12K-SG05LP3-EU Hybrid Inverter

Deye SUN-12K-SG05LP3-EU is a highly efficient 12 kW hybrid inverter designed to operate in three-phase grids. It supports 48 V storage batteries and makes it possible to build a stable and reliable power supply system both for the home and for commercial facilities. Thanks to the three-phase connection, the device is suitable for a wide range of tasks.

The efficiency of the inverter reaches 97.6%, which ensures minimal energy losses and high operating efficiency of the entire system. The inverter supports several power sources: solar panels, the centralised power grid and generators (petrol or diesel). 48 V batteries are used to organise backup power — lithium-ion or lead-acid batteries are the best fit.

It is possible to feed surplus electricity into the public grid under the «green tariff» programme, which allows you to earn additional income from generation. The intelligent monitoring system makes it possible to configure the operating parameters of the power plant flexibly and to track its status remotely in real time.

Key advantages of the inverter

• Equipped with two MPPT trackers (2 strings each), which makes it possible to install solar panels on different planes — for example, on different sides of the roof or on the ground, with different connection layouts.
• Input parameters: current up to 26 A, short-circuit current — 39 A, operating voltage — 200–650 V.
• A high charging current of up to 240 A, which ensures fast and efficient battery charging.
• Compatibility with petrol and diesel generators for backup power.
• A comprehensive protection system against overloads, short circuits and other emergency situations.

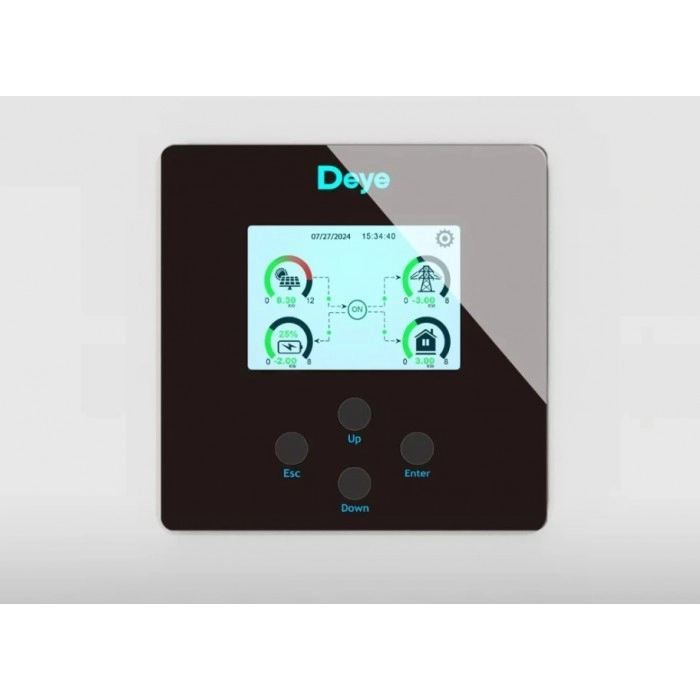

• A convenient monitoring system for tracking the operation of the solar power plant.
• Scalability: parallel connection of up to 10 inverters is supported to increase the total system power.

Deye SUN-12K-SG05LP3-EU is a versatile solution for those who strive for energy independence, stability and efficient use of renewable energy sources.
