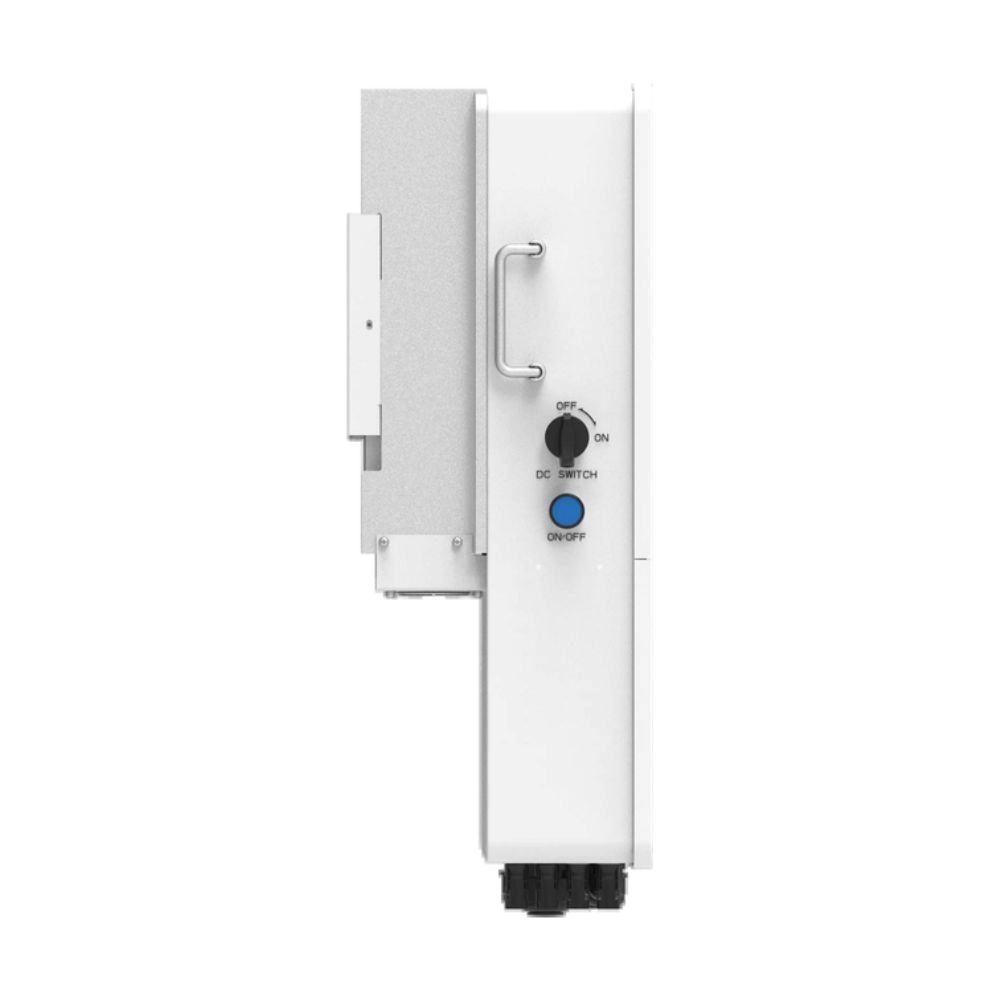

Deye SUN-10K-SG01HP3-EU-AM2 Hybrid Inverter

Deye SUN-10K-SG01HP3-EU-AM2

  • Power 10 kW
  • Phases Three-phase high-voltage
  • Ingress Protection IP65

Deye SUN-10K-SG01HP3-EU-AM2 is a highly efficient three-phase inverter with a power output of 10 kW, suitable both for private houses and for commercial facilities.


Description

Deye SUN-10K-SG01HP3-EU-AM2 is a highly efficient three-phase inverter with a power output of 10 kW, suitable both for private houses and for commercial facilities. It combines modern technologies, stable operation and ease of use, ensuring the efficient performance of a solar power plant.

The inverter has an efficiency of over 97.6%, which allows solar energy to be converted into electricity as efficiently as possible and reduces electricity costs. The three-phase connection (380 V) guarantees stable operation, while the high-voltage architecture helps to reduce energy losses.

The model comes in an IP65-rated enclosure, which allows it to be used in a variety of weather conditions. A fast switching time (about 8 ms) ensures an instant system response to changes in the grid, while the low noise level (~55 dB) makes operation comfortable.

The inverter is an effective solution for those who want to reduce electricity costs and increase energy independence. Thanks to the combination of performance, reliability and modern functionality, it is the optimal choice for building a solar power plant for a home or a business.

Inverter specifications

Brand
Deye
Transfer time
8 ms
Frequency
50/65 Hz
Dimensions
408×638×237
HV/LV
High-voltage
Ingress Protection
IP65
Color
White
Max. efficiency, %
>97.6 %
Phases
Three-phase high-voltage
Power
10 kW
Noise level
≤ 55 dB
Battery charging current
50 A
Output voltage, V
220/380 V
Weight
30.5
