Batteries

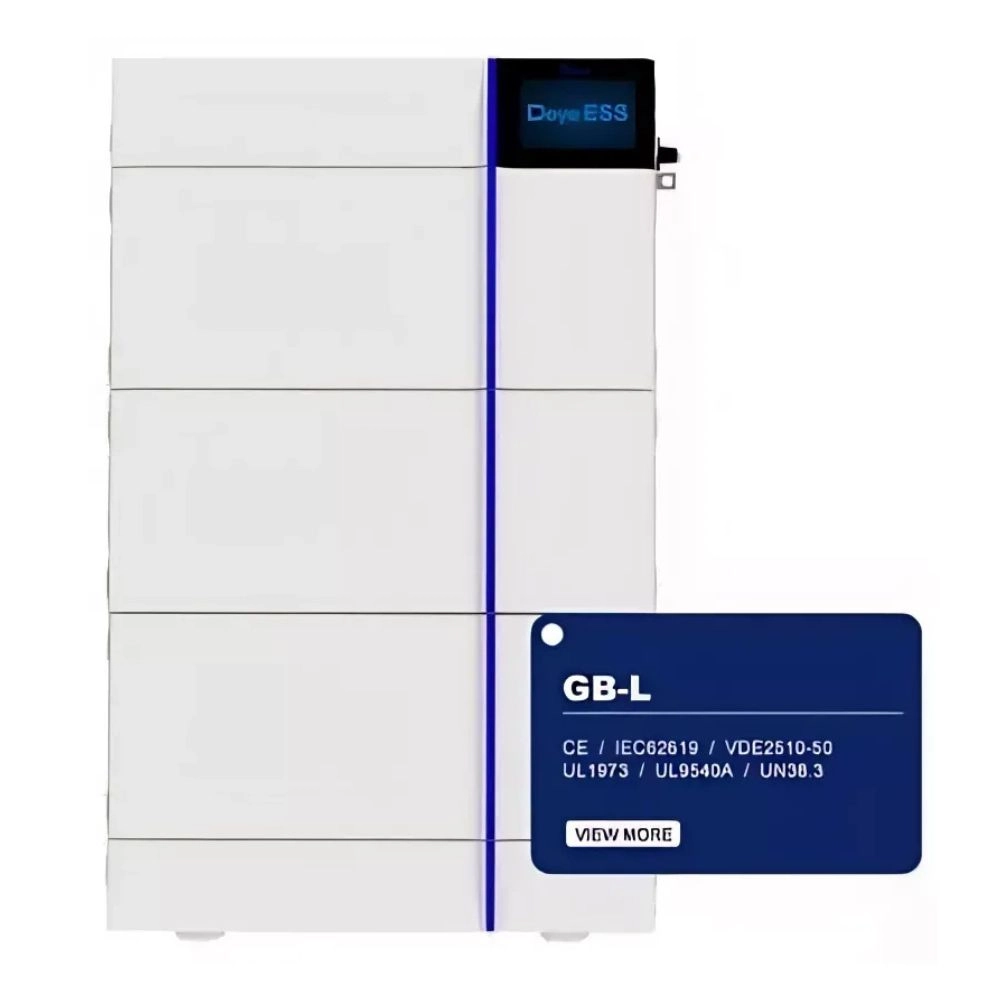

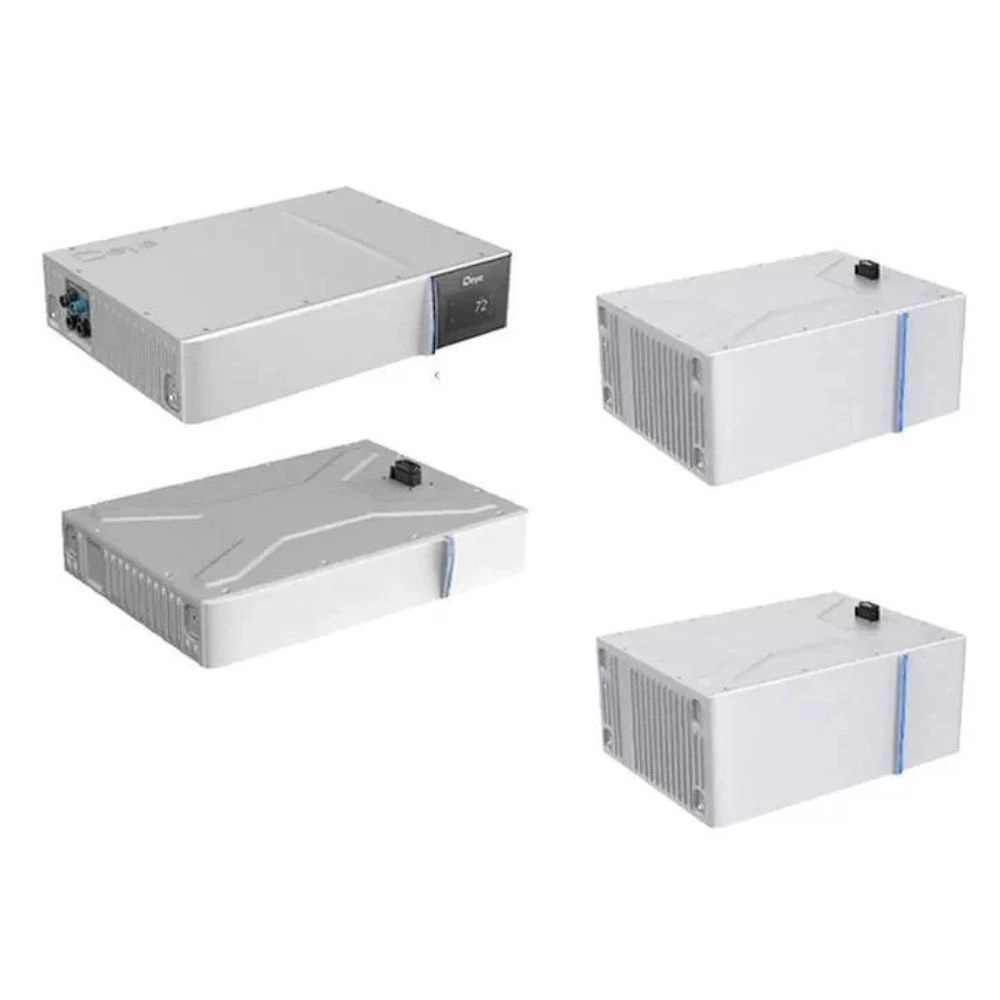

Deye GB-L PRO Modular Battery Module: 102.4V 40AH - 4.09KWH/PC Battery capacity 8.18~24.56kW

Deye GB-L PRO

  • Capacity 40 Ah
  • Voltage 102.4 V
  • Battery Type LiFePO4 (LFP)
  • Ingress Protection IP65

GB L Pro Pack 4.1 is a reliable battery module created for efficient electricity storage in residential and commercial systems.


Description

GB L Pro Pack 4.1 is a reliable battery module created for efficient electricity storage in residential and commercial systems. Thanks to modern LiFePO4 (lithium iron phosphate) technology, the device combines high safety, stable operation and a long service life. It is the optimal solution for working with inverters and for building energy storage systems.

The rated capacity of the module is 4 kWh, which makes it possible to store enough electricity for backup power or for optimising consumption. The battery supports stable charge and discharge processes, which ensures its efficient operation in solar power plants and off-grid energy systems.

Thanks to its IP65 protection rating, the module is reliably protected from dust and moisture, which allows it to be used both indoors and in more demanding operating conditions. The compact form factor and well-thought-out design ensure convenient installation and easy integration into existing systems.

Key advantages

  • Modern and safe LiFePO4 technology
  • 4 kWh capacity for efficient energy storage
  • Long service life and stable operation
  • IP65-rated enclosure protection
  • Resistance to a wide range of temperature conditions
  • Ease of installation and system scaling

Applications

  • Solar power plants
  • Home backup power systems
  • Commercial facilities
  • Off-grid energy systems

GB L Pro Pack 4.1 is a practical solution for those who seek energy independence, stability and efficient use of electricity in any conditions.

Battery specifications

Battery Type
LiFePO4 (LFP)
Brand
Deye
Capacity
40 Ah
Dimensions
540x385x220 mm
Energy
4 kWh
Ingress Protection
IP65
Model
GB-L-Pro-Pack-4.1-2
Rated current
40 A
Peak current
50 A
Discharge temperature
-20°C to 55°C
Charge temperature
-20°C to 55°C
Storage temperature
0°C to 35°C
Product type
battery module
Voltage
102.4 V
Weight
39 kg
