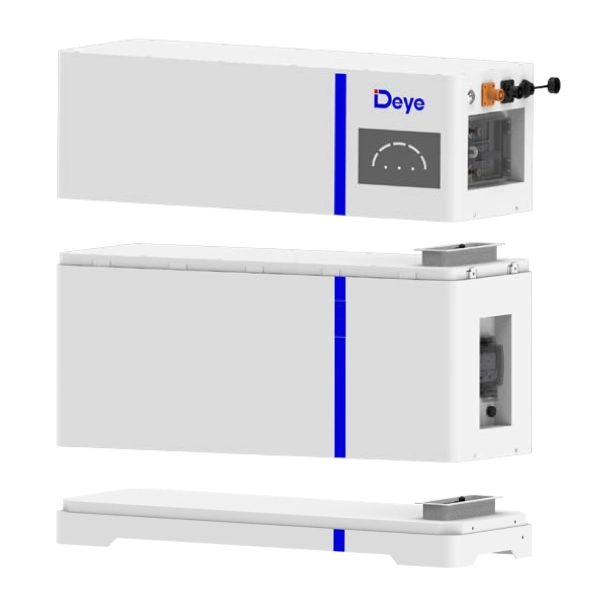

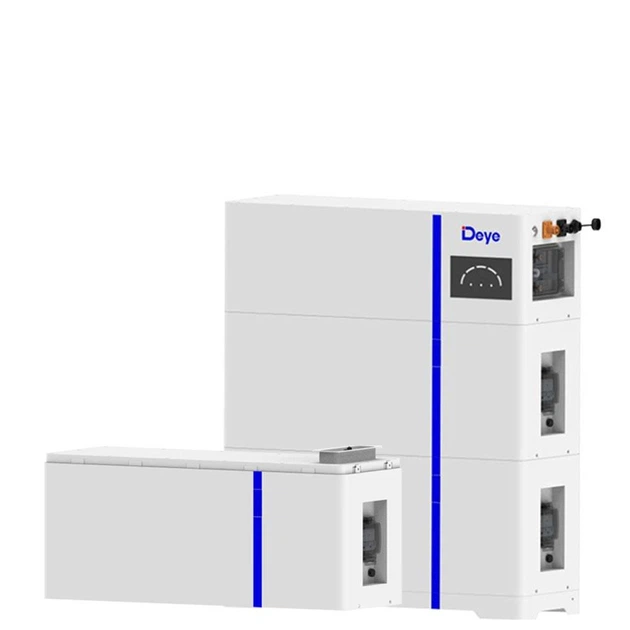

Deye AI-W5.1-B Low-Voltage Battery Kit, 5 kWh
- Voltage 51.2 V
- Battery Type Lithium iron phosphate
- Cycles 6000
- Ingress Protection IP65
The Deye AI-W5.1-B lithium iron phosphate battery is an innovative energy storage solution suitable both for private houses and for small businesses.
Description
The Deye AI-W5.1-B lithium iron phosphate battery is an innovative energy storage solution suitable both for private houses and for small businesses. Thanks to its modular design, safe chemistry and simple connection, the system will be the optimal choice for those planning to install a solar power plant in Ukraine with efficient and stable energy storage.
The Deye low-voltage battery kit has many advantages:
- the built-in intelligent management system (BMS) protects against overheating, overload, overvoltage and short circuits;
- developed on the basis of LFP cells, with no cobalt in the composition;
- thanks to the high IP65 protection level, the battery operates stably at temperatures from -20°C to +55°C;
- this system can be scaled up to 6 clusters (up to 36 modules) with a total capacity of up to 184 kWh;
- the equipment allows wall or floor mounting, without a large amount of complex wiring
Battery specifications
- Battery Type
- Lithium iron phosphate
- Brand
- Deye
- Cycles
- 6000
- Dimensions
- 720x255x569
- HV/LV
- Low-voltage
- Capacity, Ah
- 100
- Capacity (kWh)
- 5.12
- Ingress Protection
- IP65
- Number of modules
- 1
- Energy consumption
- 4.6 kW/h
- Charge/discharge current
- 50-150 A
- Battery charging current
- 50 A
- Voltage
- 51.2 V
- Output voltage, V
- 51.2 V
