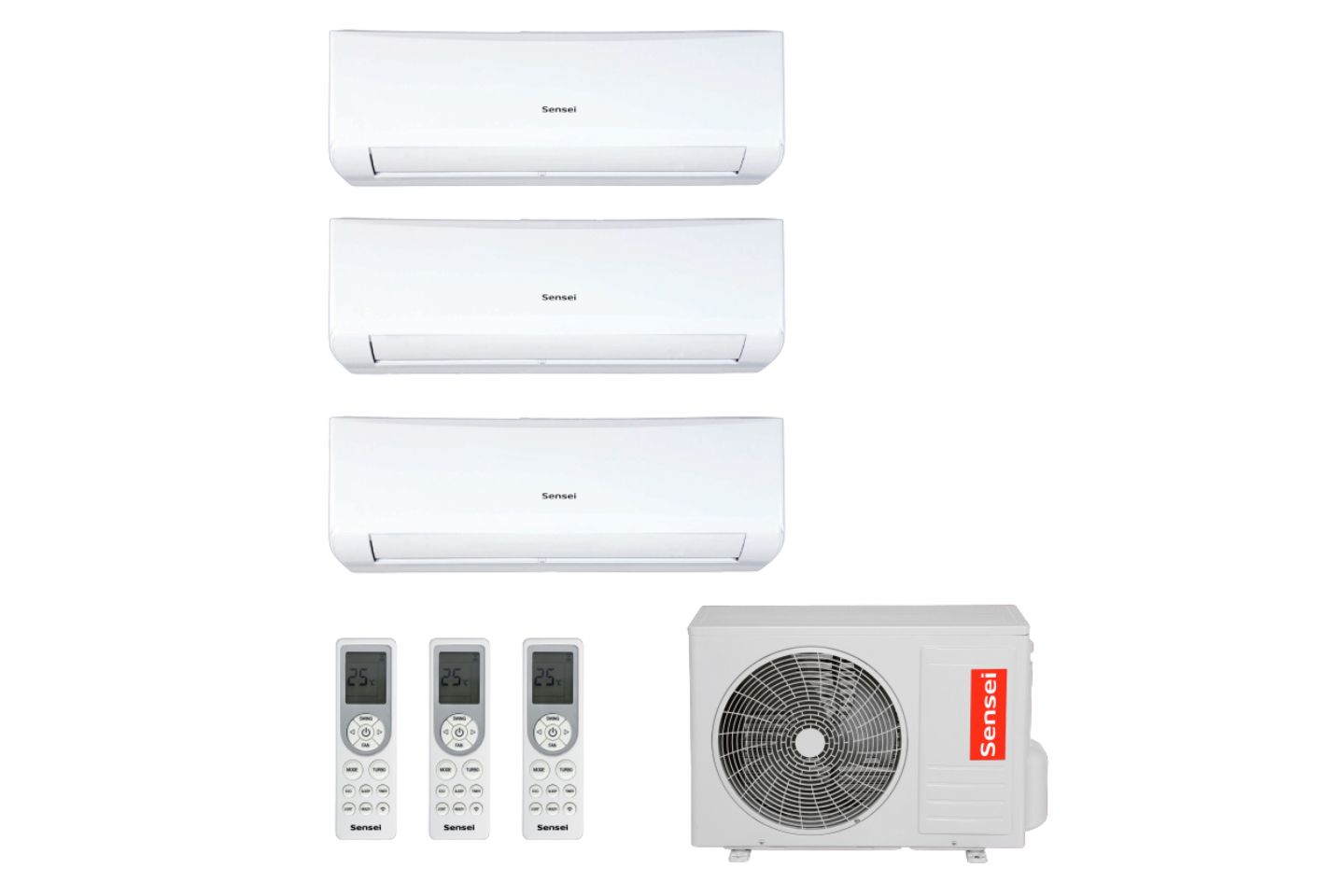

SACM-09SKWA/I

Year-Round Comfort

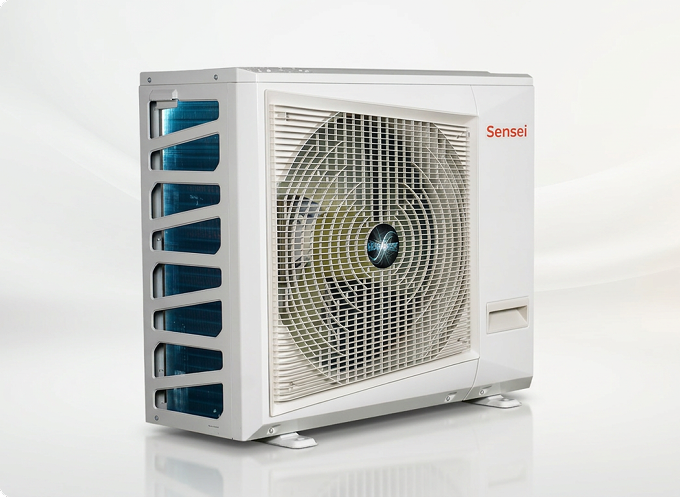

Combined with high-tech SENSEI outdoor units, the system operates as a full-fledged heat pump and is certified for heating at outdoor temperatures down to -20°C and cooling up to +43°C. In summer, the inverter board smoothly modulates capacity, maintaining the set temperature with an accuracy of up to 0.5°C, completely eliminating drafts.

Technical Advantages & Features

• A++ / A+++ Energy Efficiency Class: Thanks to advanced DC inverter control, the system delivers a seasonal SEER of up to 6.1 (for cooling) and a SCOP of up to 4.0 (for heating).

• Reliable Japanese Compressor: The outdoor units paired with the SACM-09SKWA/I are equipped with highly efficient GMCC (Toshiba) or Highly (Hitachi) compressors featuring double sound insulation.

• Eco-Friendly R32 Refrigerant: The unit is fully optimized for next-generation R32 refrigerant, which increases system performance by 10% and reduces energy consumption.

• Acoustic Comfort (Ultra Quiet): The indoor unit's noise level at minimum speed is just 21 dB, which is quieter than rustling leaves.

Installation & Operation Insights

• From experience: Multi-split systems require precise refrigerant line calculations. This model uses a standard pipe connection diameter of 1/4" (liquid) and 3/8" (gas). The high-quality casing material is seamlessly fitted, completely eliminating micro-creaks caused by temperature fluctuations.

• We recommend setting up Wi-Fi via the app individually for each room, allowing every family member to manage their climate autonomously.

Comparison with Other SENSEI Solutions

A multi-split system based on the SACM-09SKWA/I has a massive advantage over standard split systems when you need to air-condition 3 to 5 rooms: instead of mounting multiple outdoor units on the facade, only one is installed, preserving the aesthetic appearance of the building.

Recommendations: Which Model to Choose If This One Is Not Suitable

Best Suited For:

• Apartment and cottage owners who want to connect multiple rooms to a single outdoor unit and keep their building facade clean.

• Bedrooms and children's rooms where quiet operation (from 21 dB) and gentle air distribution are critical.

Might Not Be Suited For:

• Spaces exceeding 25 m² or rooms with large south-facing panoramic windows—in these cases, it is better to opt for the 3.5 kW model (SACM-12SKWA/I).
